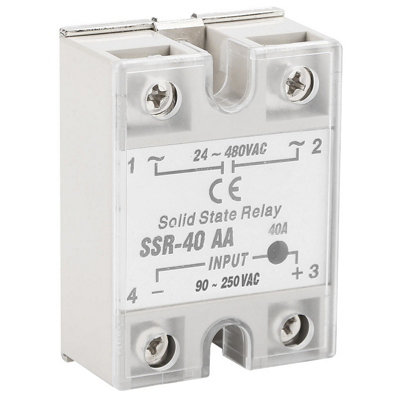

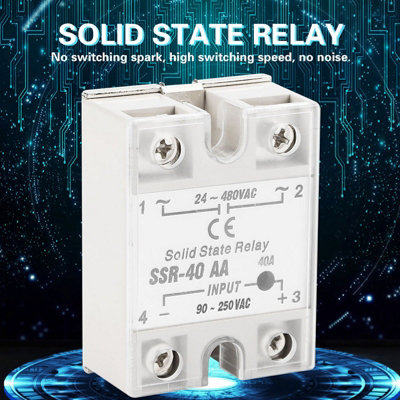

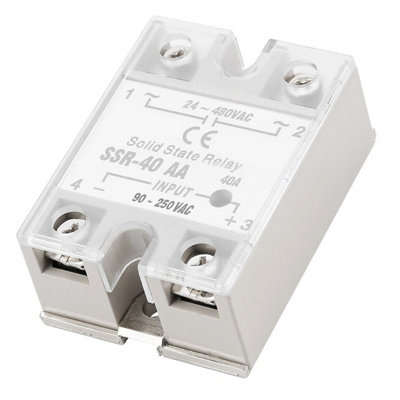

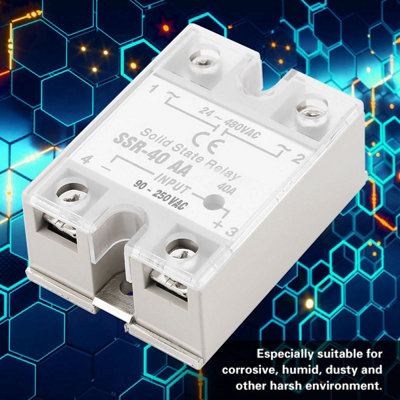

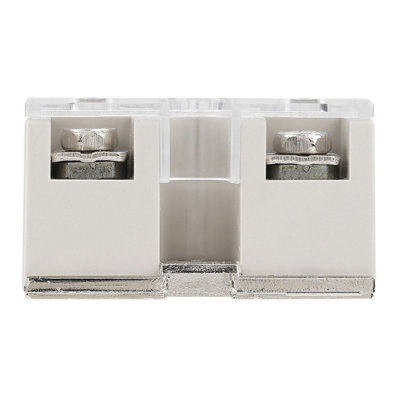

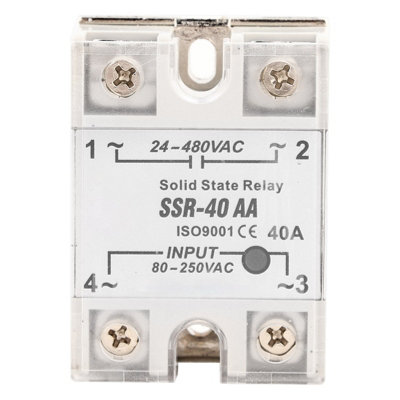

SSr 40AA 40A Solid State Relay Module AC-AC Input AC Output 24-480V AC
Product details
Product information
Features: Opto-isolator is between the input circuit and the output circuit. Pass load-current aging test. Get ec CE certification and international ISO9000 certification. LED light displays the working status in real time. Specification: Material: Plastic+Metal Color: Shown As Pictures Weight: 124g Type: Solid State Relays Trigger Current: 40 Off Speed: Normal Heat Dissipation Function: no heat sink Power Characteristics: medium power Rated Forward Average Current: 40 Frequency Characteristic: intermediate frequency Maximum Stable Working Current: 40 Poles: 3 poles Application: solid state Pick-Up Current: 40 Control Mode: AC-AC Load Current: 40A Control Current: AC:12mA On State Leakage Current: less than 2mA General Antihypertensive: no more than 1.5V AC Breaking Time: less than or equal to 10mS Pressure Resistance: 2500V AC Insulation Resistance: 500 mΩ / 500 VDC Ambient Temperature: - 30 ℃ to + 75 ℃ Installation: Bolted Work Instruction: LED Package List: 1 x Solid State Relay Note: It can only be used within 30% of 40a (12A) and a radiator should be added at the bottom. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
- Guarantee - 1 month
Specifications
| Product code | 8418981067196 |
|---|
