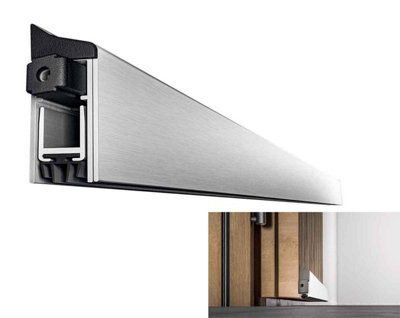

Stormguard Automatic Drop Down Door Bottom Seal 780mm to 930mm
Product details
Product information
Activated by the closing action of the door, dropping down to seal only when the door is closed
- Draught Proofing
- 1 year
Features and benefits
Activated by the closing action of the door, dropping down to seal only when the door is closed Fitted so that the plunger at one end of the door presses again the frame when the door is almost closed, which then operated the drop down seal. Will drop down and seal against out of level floors if required. Surface mounted for retro fit on timber door sets Acoustically tested to BS EN ISO 140-3:1995, achieving a rating of up to 37dB Rw Fire tested to BS476: Part 20/22: 1987 to 60 minutes Smoke tested to BS EN 1634-3:2004 For use with or without threshold plates, and straight down to the carpet Meets the requirements of approved document E and part M UK building regulations Draught Proof. Forms a barrier against outside climate, noise, light, fire, smoke and insects Can be fitted to the inside or outside of the door 14mm maximum drop 4-fin high quality ‘V’ zero class PVC rubber seal, self-extinguishing Screw fix (screws supplied) 930mm, max trimming length 150mm, therefore can be cut down as small as to 780mm
- Surface mounted for retro fit on timber door sets
- Will drop down and seal against out of level floors if required.
- Fitted so that the plunger at one end of the door presses again the frame when the door is almost closed, which then operated the drop down seal.

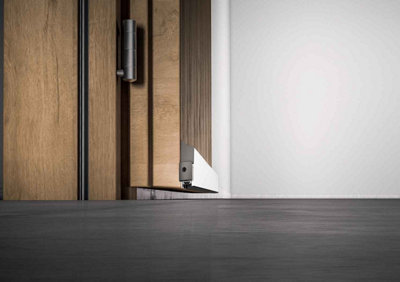

- Can be fitted to the inside or outside of the door
- 14mm maximum drop
- 930mm, max trimming length 150mm, therefore can be cut down as small as to 780mm

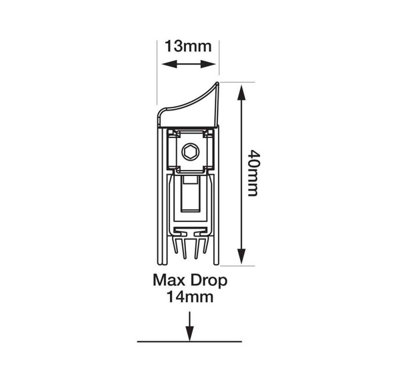

Specifications
| Cut to size | Can be cut to size |
|---|---|
| Maximum gap size | 14mm |
| Product depth | 40mm |
| Product length | 930mm |
| Product thickness | 13mm |
| Product width | 13mm |
| Product code | 0664918228842 |
