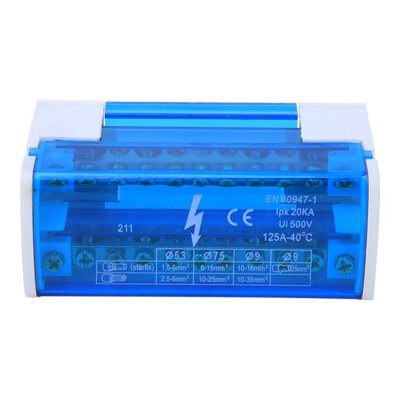

Terminal Distribution Box Din Rail 2-Level Single Phase with Transparent Dust Cover 211
Product details
Product information
Features 1、The box adopt brass conductive and flame retardant housing, the maximum withstand current is 100A 2、The isolation barrier between the terminal blocks can prevent touching and causing short circuit 3、Small body with many splitting heads, which saves wiring space to the greatest extent 4、Adopt Din Rail installation method, fast and convenient to install. 5、Transparent dust cover design, dust-proof insulation, you can know the internal wiring state without opening the cover Specification Item Type: Terminal Distribution Box Model: 2-level junction box 211 Rated Current: 125A Type: Terminal block / Wiring block (strip) Product Outlet: 2 input 20 output Number of Holes: 2x11 Brass Rod: 6.5 × 12mm Metal Material: Brass, primary color Shell Material: High quality PA nylon material Installation: Din Rail Application: Cabinet Application Area: Electrical engineering Fire Rating: 94V-2 flame retardant, solvent resistance, good impact resistance Working Temperature: -30℃ ~ 110℃ Applicable Power Range: 250-450V Size: Approx. 100 x 45 x 50mm / 3.9 x 1.8 x 2in Package List 1 x Terminal Distribution Box
- Guarantee - 3 months
Specifications
| Pack quantity | 1 |
|---|---|
| Product length | 100mm |
| Product weight | 180g |
| Product width | 60mm |
| Product code | 8418981054394 |
