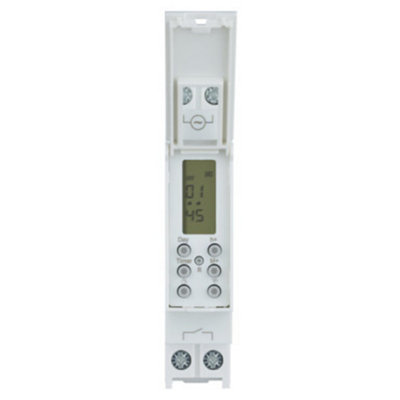

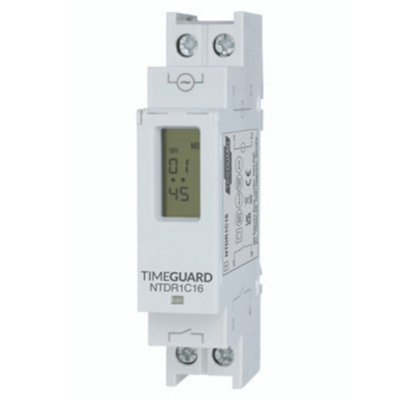

Timeguard NTDR1C16 Single Channel DIN Rail Mounted Digital Timer Switch 16(2)A
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£19.45
Product details
Product information
Single module DIN Rail time switch with a full digital 24 hour display and volt free output. The battery backup allows for up to 1000 hours of power reserve from a power cut, keeping your programme sets retained for when power is restored. This unit boasts a high load capability without the need for a contactor.
- Terminals accept up to 2.5mm² cable
- Guarantee - 1 year
Features and benefits
- DIN Rail installation. 6 x ON/OFF programme settings. 230V AC 50Hz
- Switch rating 16A resistive, 2A inductive, 400W LED. 24 Hour / 7 Day programming with 5 + 2 day option
- Digital 24 hour display. Self cancelling manual override. Normally open volt free contacts
- Maximum 2.5mm² terminal connections. IP20 rated
- Class II - double insulated. UKCA & CE certified
- Dimensions: 90mm tall x 18mm wide x 60mm deep
Specifications
| Amp rating | 16A |
|---|---|
| Current type | AC |
| Display | Digital |
| Fixing type | Rail |
| Number of channels | 1 |
| Number of modules used | 1 |
| Number of poles | 1 |
| Number of programmes | 6 |
| Power voltage supply | 230-240V |
| Weight (g) | 95g |
| Timer type | Electronic |
| Product code | 5012483015902 |
