Timeguard RTS113 24 Hour/Half Day & Day Omit 3 Pin 20A Round Pattern Time Switch Controller
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£76.50
Product details
Product information

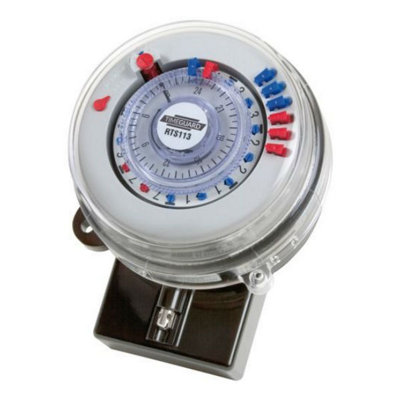

Electro-mechanical round pattern double insulated time controller comes with a 3 pin wireable base. It is compatible with the base used for the single channel ON/OFF mains linked industry standard round pattern timeswitch.
- Functions - Lighting Control
- Guarantee - 1 year
Features and benefits
- Up to 24 ON/OFF programmes in a 24 hour period. Half day(s) and day(s) omit facility, unlimited over a 7 day period
- Permanent ON facility (with a prominent visual indicator) accessible without removing the transparent cover
- Minimum ON time is 30 minutes which can be incremented in 15 minute steps
- Transparent cover can be locked
- 230V AC 50Hz. Contact rating Resistive 20A (4.6kW), Inductive 4A
- CE certified
- Dimensions: 100mm wide x 120mm high x 76mm deep
Specifications
| Amp rating | 20A |
|---|---|
| Current type | AC |
| Frequency | 50Hz |
| Number of channels | 1 |
| Power voltage supply | 240V |
| Depth (mm) | 76mm |
| Height (mm) | 120mm |
| Weight (g) | 450g |
| Width (mm) | 100mm |
| Timer type | Mechanical |
| Product code | 5012483007419 |
