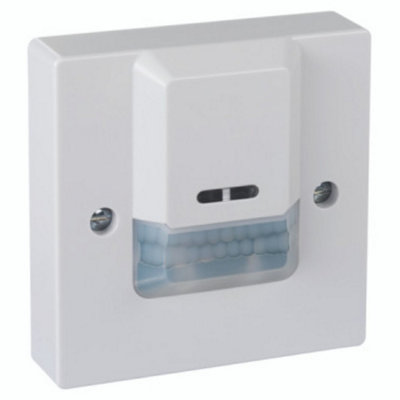

Timeguard ST810 Suretime Motion Sensor PIR Light Switch 2 Wire

Product information

Detects PIR body movement and automatically switches the light ON, turning it OFF after a pre-set time (adjustable)

• Guarantee - 1 year
• Fittings & fixings not included

Features and benefits

• 170° detection angle with 8m (front) and 4m (side) detection range
• 2 wire connection - no neutral required. Replaces 1 gang (2 wire switch). NOT suitable for use on 2 way switching
• Time on adjustable between 10 seconds and 15 minutes. Adjustable LUX (light level) 1 - 10 lux. Manual ON/OFF slider switch (can be disabled)
• For indoor use only. Motion indication via red LED indicator. Class II - double insulated (no earth connection required)
• Load requirements- 300W Halogen, 18W to 150W fluorescent (low-loss or electronic ballast), 15W to 100W CFL (electronic ballast), 5W to 300W LED
• UKCA & CE certified
• This product requires to be permanently powered which is achieved through the switched live. As such, some LED and CFL lamps may glow or flash whilst this product is in the “OFF” status. This glow/flash can be eliminated by adding the Timeguard ZV900 Automatic switch load controller to the circuit. The Model ZV900 is sold separately.
• Dimensions: 87mm high x 87mm wide x 27mm deep. 17mm rear projection
