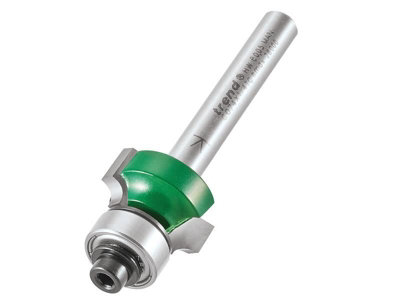

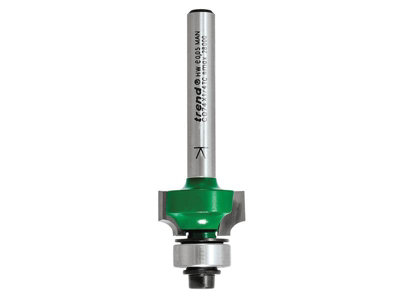

Trend C074X1/4TC Guided Rounding Over 1/4" 3.2mm X 9.5mm Router Bit Cutter
Product details
Product information
The Trend CraftPro Round Over Cutter leaves perfect, superfine, round over detail for a contemporary, eased edge arris profile on straight and curved edges. With two carbide TCT tips for cleaner cutting edges and fast clearance of waste in all timber and timber-based materials. A PTFE coating minimises heat and resin build-up for increased cutter performance and longevity. 1/4in shank for easy control in smaller routers, 'K' marked to ensure safe working practices. Supplied with two bearings for Round Over or Quirked Ovolo moulding for additional options for fine detailing on boxes and model making work. The Trend C074 x 1/4 TC Round Over Two Flute Cutter with a 1/8in imperial radius for matched replication. Specification: Cutting Diameter: 19.0mm Cutting Depth: 9.5mm (3/8in) Bearing; 1: 9.5mm, 2: 12.7mm Radius: 3.2mm (1/8in) Overall Length: 61mm Shank Diameter: 1/4in
- Guarantee - Statutory
- 5027654016886
Features and benefits
Shank:1/4in Radius:3.2mm Cut Diameter:19.0mm Cut Depth:9.5mm Brand:Trend Category:Router Bits Height:147mm Width:32mm Depth:50mm Weight:0.05kg MPN:C074X1/4TC
- Shank:1/4in
- Radius:3.2mm
- Cut Diameter:19.0mm
- Cut Depth:9.5mm
- Brand:Trend
- Category:Router Bits
- Height:147mm
- Width:32mm
Specifications
| Blade length | 9.5mm |
|---|---|
| Brand | Trend |
| Maximum cutting depth | 9.5mm |
| Maximum cutting diameter | 19mm |
| Maximum RPM | 24000rpm |
| Minimum cutting diameter | 19mm |
| Model name/number | C074X1/4TC |
| Overall length | 61mm |
| Pack quantity | 1 |
| Radius cutting size | 3.2mm |
| Router cutter profile | Rounded |
| Shank size | 6.35mm |
| Tip type | Tungsten carbide |
| Weight (g) | 1g |
| Product code | 5027654016886 |
