Vortice 12018 Quadro Micro 100I T Flush Centrifugal Extractor Fan (Timer Model)
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£72.50
Product details
Product information

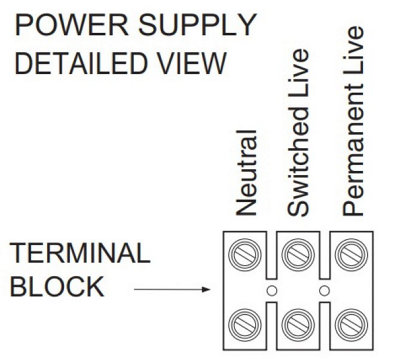

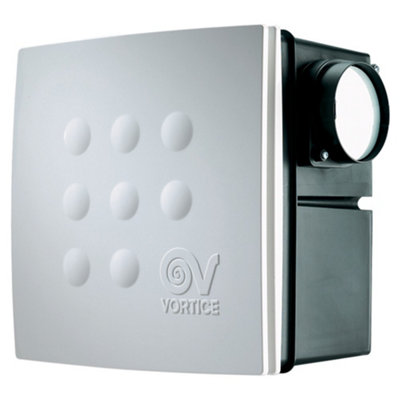

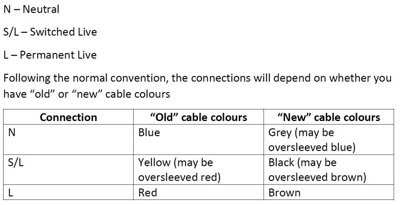

Stylish modern and powerful flush mounted centrifugal extractor fan suitable for Bathroom application. The air is extracted laterally through an opening concealed beneath the outer cover and drawn from all around the product. This model is for operation in conjunction with the room light switch. When the light is switched on the fan comes on, when the light is switched off the fan continues to run for a pre-set time (adjustable). This fan requires permanent live, switched live and neutral (3 wires excluding earth) at the fan position in order to operate correctly. The timer function cannot be used unless you have these three wires available to connect. Please check before ordering!
- Suitable for: Recessed
- Ducting not included
Features and benefits
- Mains voltage 220-240V AC 50Hz. Two speeds, selectable at installation
- Extraction rate 21/ 31 litres per second, 75/110 cubic metres per hour (low speed / high speed)
- Power consumption 20 / 27 watts (low speed / high speed)
- Sound output 25.9/ 33.5 dB(A) @ 3m (low speed / high speed)
- Wall or ceiling installation. Backdraught protection
- Timer run timer - adjustable between 3 and 20 mins
- UKCA & CE certified
- Dimensions: 258mm high x 258mm deep x 34mm deep (visible beyond installed surface), 144mm behind installed surface
Specifications
| Brand | Vortice |
|---|---|
| Material | ABS plastic |
| Colour | White |
| Product height | 258mm |
| Product width | 258mm |
| Projection from the wall | 34mm |
| Spigot diameter | 98mm |
| Extraction rate | 110m³/h |
| Power voltage supply | 220-240V |
| Noise level at 3m | 34dB(A) |
| Maximum timer duration | 20min |
| Power consumption in use | 27W |
| Room use | Bathroom & WC |
| IP rating | IPX4 |
| Model name/number | Quadro Micro |
| Control type | Timer |
| Overload protection | Overload protection |
| Timer type | Timer function |
| Product code | 8010300120188 |
