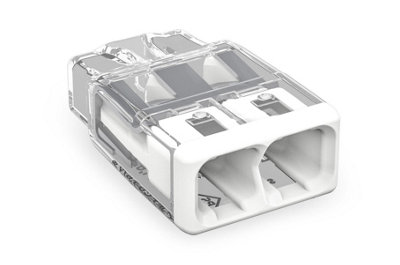

Wago 2773-402 Compact Push Connector- 2 Way Terminal Block White(120PC)

Product information

Wago 2773-402 2 Way Compact Push Wire Splicing Connector- Terminal Block White(120PC) Convenient wiring via an extremely compact design. Push-in termination of up to eight solid and stranded conductors. Individually combinable cross sections from 0.5 to 4.0 mm². Any combination of conductor sizes is possible. Push Wire connection terminates solid ("s") copper conductors. Wago 2773-402 is a 2-way Compact Push Connector. This connector allows for solid, stranded, and fine stranded cables to be connected together without the need for any tools. Push-in termination of up to eight solid and stranded conductors. Wago spring clamp terminal blocks are suitable for solid aluminium conductors up to 4 mm²/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. Features: 2 Way Compact splicing connector. Transparent housing and white cover. Rated Surge Voltage 4 kV. Voltage Rating 450V. Rated Current 32 A. Push Wire Connection Technology. Solid conductors: 0.75 - 4mm². Stranded conductors: 1.5 - 4mm². Conductor diameter: 1.6 mm. Strip Length: .51-in. Number of connection points: 2. Maximum operating temperature is 185'F. Ratings per IEC/EN 60664-1. Surrounding air temperature: max 85°C (T85). Product Range: 2773 Series. Wire size: 0.75mm² to 4mm² (Solid) and 1.5mm² to 4mm².

• Guarantee - 1 year
