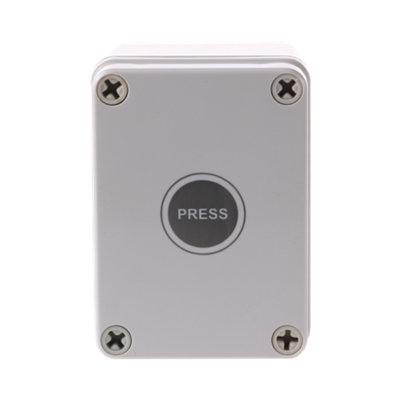

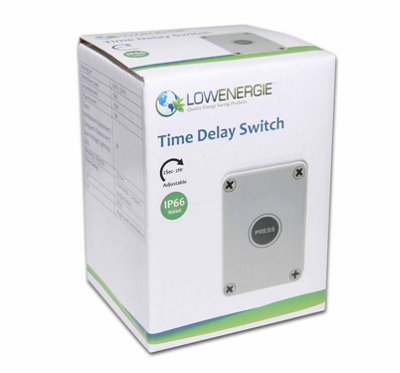

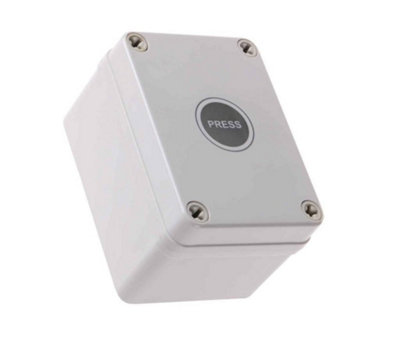

Weatherproof Outdoor Timer Delay/Lag Switch

Product information

Outdoor weather proof time delay/lag switch offering delay of 2 seconds to 2 hours.

• Guarantee - 1 year
• Fittings & fixings included
• Weatherproof

Features and benefits

This high-quality electronic weatherproof time lag switch is made out of high-quality ABS material Easy to use – once installed simply set the time lag switch to the desired time interval which can be anywhere between 2 seconds and 2 hours. Loads: Incandescent – 16A max, Fluorescent 6A max Compact Fluorescent/Low Energy 3A max Low Voltage 3 A max The timer can be triggered by applying a live connection to the “trigger” terminal. This can be done using a momentary switch for example, in lighting applications; or an unswitched link for applications such as extractor fan over-run. Technical Specification: Adjustable time function from 2 seconds to 2 hours Multiple accurate time settings using DIP switches and rotary adjuster IP Rating: IP66 rated, weatherproof switch, ideal for outdoor use Multi-Point Switching: For switching the load from multiple locations simply connect two or more units in parallel. Note: All switches must share the same power supply. Load Specification: – Incandescent lighting loads – 16A maximum – Fluorescent lighting loads – 6A maximum – Compact fluorescent/low energy lighting loads – 3A maximum – Low voltage lighting loads – 3A maximum (Note: a maximum of 6 Fluorescent light Fittings is recommended with a total power factor correction capacitance not exceeding 40µf.) Fans and ventilation equipment – 3A maximum

• Incandescent – 16A max, Fluorescent 6A max
• Compact Fluorescent/Low Energy 3A max
• Low Voltage 3 A max
• Adjustable time function from 2 seconds to 2 hours
• Multiple accurate time settings using DIP switches and rotary adjuster
• P Rating: IP66 rated, weatherproof switch, ideal for outdoor use
• Multi-Point Switching: For switching the load from multiple locations simply connect two or more units in parallel. Note: All switches must share the same power supply.
