Wiha 44241 Stripping and Assembly Tool WHA44241
Product details
Product information

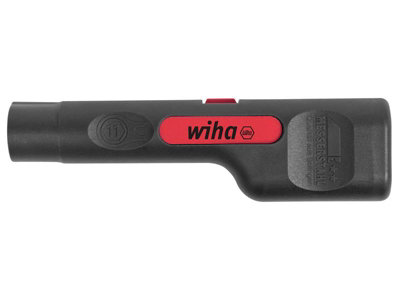

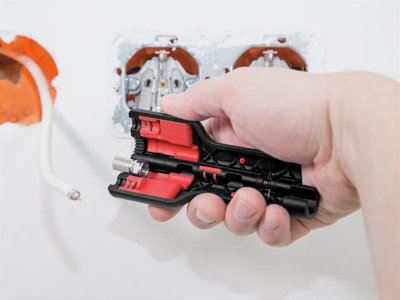

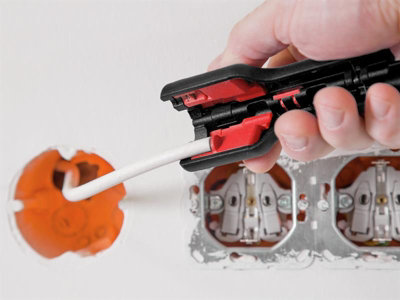

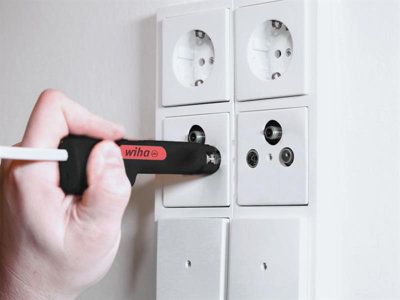

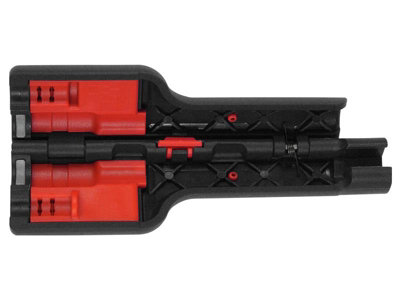

The Wiha Stripping and Assembly Tool offers the user all the necessary functions required for processing a coaxial cable with F-screw connector in one compact tool. Precisely fitting and stripping of coaxial cables with an outer diameter of 6 to 8mm can be carried out in just one work step. The stripping is performed quickly and in a space-saving manner by means of multiple rotary movements using two pairs of blades positioned opposite each other. The already adjusted stripping dimension is designed for common F-screw connectors. In the next step, the integrated gripping jaws can be used to screw F-connectors onto the already stripped cable. Then the open hexagon SW11 ensures easy assembly or disassembly of the F-connector. The hexagon offers very good accessibility and is easy to operate, especially in confined work environments. For safe and space-saving storage, the tool can be locked in a closed position by means of a slide. Specifications: Overall Length: 125mm. Area Stripped (Min.-Max.): 6-8mm. Hex Head: 11.0.
Features and benefits
Brand:Wiha Category:Wire Strippers Height:130mm Width:10mm Depth:20mm Weight:0.08kg MPN:44241
- Brand:Wiha
- Category:Wire Strippers
- Height:130mm
- Width:10mm
- Depth:20mm
- Weight:0.08kg
- MPN:44241
Specifications
| Brand | Wiha |
|---|---|
| Diameter (mm) | 1mm |
| Length (mm) | 1000mm |
| Model name/number | 44241 |
| Pack quantity | 1 |
| Weight (g) | 1g |
| Product code | 4010995442415 |
