XLR Speaker Matrix Zone Mixer for Amplifiers Switch Splitter Distribution Box DJ

Product information

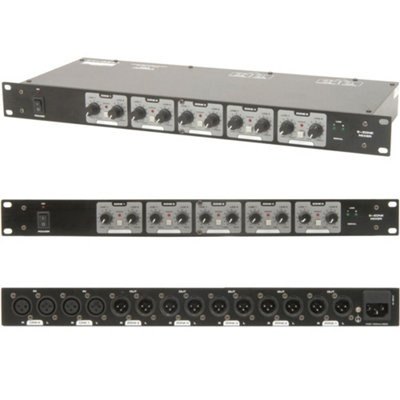

2 Input, 5 Output Balanced XLR Matrix Splitter BoxAudio Management & DistributionHow it works – Commonly used with any multi-output setup, this unit is suited to controlling a multi-room zoning sound system with up to 5 stereo or mono zones. Individual zones can be selected/switched as mono or stereo if required. 2 separate stereo inputs can be selected or blended at will in each zone.For example, a typical example is below;Input 1 > Output 1, 4Input 2 > Output 3Output 2 is switched off Ideal for home use, office use, business use, such as bars and clubs where an independent sound control is required for different rooms or zones.Build Quality – This box has a metal outer case, feet on the bottom and because the build quality is excellent, it is robust and durable. The dimensions are 483mm x 175mm x 44mm.Technical Specification: Power Supply: 90-240Vac 50/60Hz (IEC cable supplied)Inputs: Line 1 L+R, Line 2 L+R, Balanced XLR FemaleOutputs: Zone 1 to 5 L+R, Balanced XLR Male Input Impedance: 40K OhmsOutput Impedance: 220 OhmsFrequency response: 20Hz - 25kHz, +0/-1dBSignal to noise ratio: >100dBTHD: <0.005%

• Guarantee - 1 year
