Yale Quartus Cranked Window Handle - Chrome, Right, 40mm
Product details
Product information

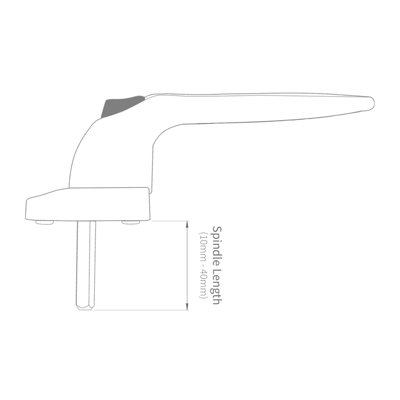

Stylish and strong, lockable cranked window handle for aluminium and uPVC espagnolette windows. Manufactured by industry leader Yale, and supplied with a 10-year mechanical and surface guarantee. Offset handles are available for use with left or right hand and are designed to provide more hand clearance when opening. They are made from tough die-cast zinc, with a durable powder-coated or plated finish to offer high corrosion resistance, impact strength and protection against abrasion. Espag handles feature a 7mm metal spindle that is fixed to the lever and runs through the handle backplate to fit into a lock mechanism within the sash. Turning the lever rotates the spindle and triggers the mechanism, which in turn locks or unlocks the window. The Yale Quartus Espag handles are also available as inline straight versions, which can be used on left, right or top opening windows. Technical Information Material: Die Cast Zinc (Base, Grip and Key), Nylon and ABS (Mouldings), Passivated mild steel bar (Spindle) Finish: Copper nickel chrome plate layer (Chrome and Champagne Gold, Gold has additional coloured lacquer)). Powder-coated (White, Satin Black and Silver). Backplate size (l x w x d): 65mm x 17.4mm x 13mm Fixing screw positions: 43mm (centre-to-centre) Spindle length: 10mm, 15mm, 20mm, 30mm or 40mm Overall length: 160.2mm (handle and backplate) Overall projection from sash: 49mm Overall width: 17.4mm Endurance Performance: Tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles Corrosion resistance: Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST) Building hardware requirements: BS EN 13126:2011 Part 1: Building hardware Guarantee: 10-year surface and mechanical
- Guarantee - 10 years
- Fittings & fixings included
Features and benefits

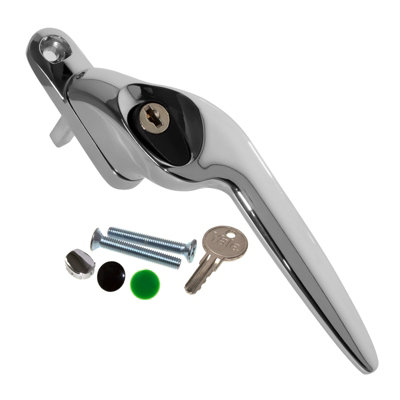

Right-hand, chrome cranked handle with 40mm spindle, and supplied with key, screws, and cappings. Other finishes and spindle lengths available.

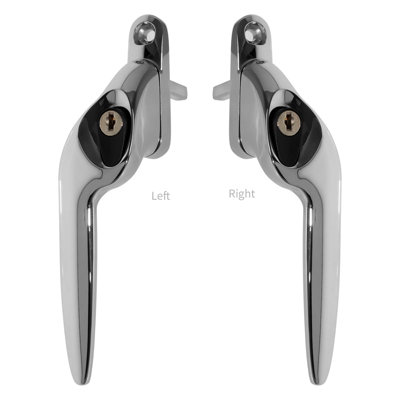

- Offset handle design - increases hand clearance
- Attractive and ergonomic - sleek design and comfortable use
- High quality finishes - smooth and durable coating
- Locking or non-locking - optional keyhole cover
- Improved window security - key deadlocks the sash
- Child safety - lever requires button press

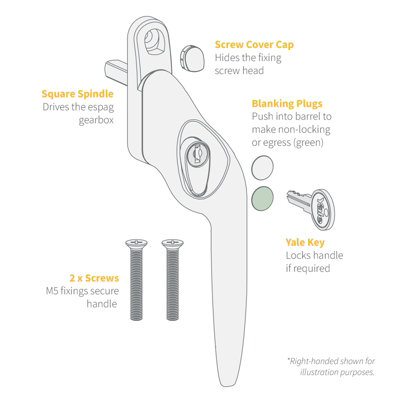

- Fixings supplied - includes key, screws and covers
- 10-Year guarantee - product you can trust
Specifications
| Brand | Yale |
|---|---|
| Pack quantity | 1 |

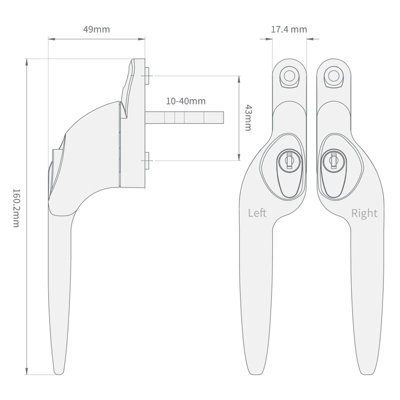

| Handle length | 160.2mm |
| Number of keys supplied | 1 |
| Plating | Bright chrome-plated |
| Coating | Lacquered |
| Handed | Right-handed |
| Material | Zinc alloy |
| Model name/number | YBC40CHR |
| Number of pieces | 7 |
| Fitting type | Offset right |
| Colour | Chrome |
| Effect | Chrome effect |
| Finish | Gloss |
| Product code | 5056353918801 |
