Yale Quartus Inline Window Handle - Chrome, 10mm

Product information

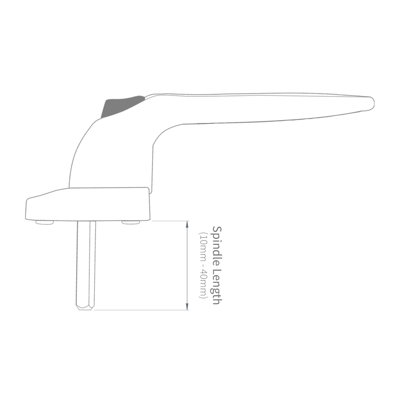

Stylish and strong, lockable inline window handle for aluminium and uPVC espagnolette windows. Manufactured by industry leader Yale, and supplied with a 10-year mechanical and surface guarantee. Straight inline handles look sleek and discreet on any window, whilst being comfortable and versatile on left or right-hand windows. They are made from tough die-cast zinc, with a durable powder-coated, passivated, or plated finish to offer high corrosion resistance, impact strength and protection against abrasion. Espag handles feature a 7mm metal spindle that is fixed to the lever and runs through the handle backplate to fit into a lock mechanism within the sash. Turning the lever rotates the spindle and triggers the mechanism, which in turn locks or unlocks the window. The Yale Quartus Espag handles are also available as left and right offset cranked versions, which provide increased hand clearance. Technical Information Material: Die Cast Zinc (Base, Grip and Key), Nylon and ABS (Mouldings), Passivated mild steel bar (Spindle) Finish: Copper nickel chrome plate layer (Chrome and Champagne Gold, Gold has additional coloured lacquer)). Powder-coated (White, Satin Black and Silver). Backplate size (l x w x d): 65mm x 17.4mm x 13mm Fixing screw positions: 43mm (centre-to-centre) Spindle length: 10mm, 15mm, 20mm, 30mm or 40mm Overall length: 160.2mm (handle and backplate) Overall projection from sash: 49mm Overall width: 17.4mm Endurance Performance: Tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles Corrosion resistance: Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST) Building hardware requirements: BS EN 13126:2011 Part 1: Building hardware Guarantee: 10-year surface and mechanical

• Guarantee - 10 years
• Fittings & fixings included

Features and benefits

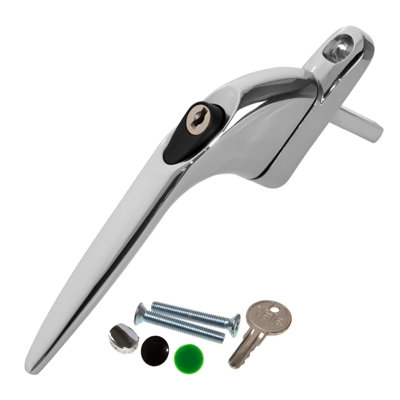

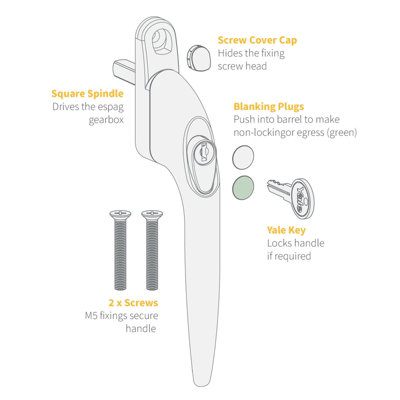

Chrome inline handle with 10mm spindle, and supplied with key, screws, and cappings. Other finishes and spindle lengths available.
