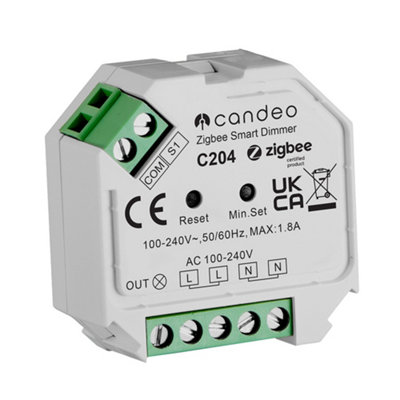

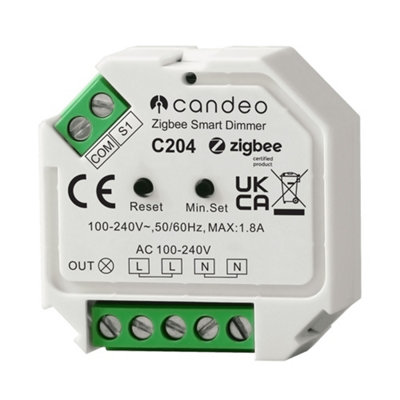

Zigbee - Dimmer Switch Module (LED 200W / Halg 400W - With Or Without Neutral)

Sold & shipped by Candeo Smart Ltd
Available online only and not stocked in B&Q stores
£45

Product details

Product information

Take control of your lighting with the Zigbee Dimmer Switch Module, a versatile solution designed to fit installations with or without a neutral wire. This module supports LED bulbs up to 200W and halogen bulbs up to 400W, offering precise dimming capabilities to create the perfect ambiance in any room.

  • Guarantee - 1 year
  • Smart
  • Alexa, Google Assistant, Philips Hue, Home Assistant (ZHA and Zigbee2MQTT), Hubitat Elevate, Smartthings

Features and benefits

The Zigbee Dimmer Switch Module offers versatility, reliability, and advanced functionality, making it an essential addition to any smart home setup. Whether you're looking to enhance convenience, save energy, or personalise your lighting experience, this module delivers exceptional performance and flexibility. This module works seamlessly with standard Zigbee hubs and supports LED bulbs up to 200W and halogen bulbs up to 400W. If you're using with Philips Hue, you get the added benefit of control via Apple HomeKit. This module does not require a neutral wire.

  • Works with all standard Zigbee home hubs - Smartthings, Hubitat, Echo, Ikea
  • Works with HomeKit when used with Philips Hue
  • Works with Alexa and Google Assistant if your hub supports it
  • AC Phase Cut Trailing edge dimmer, supporting resistive and capacitive loads. Flicker free, noise free.
  • No neutral wire required, making it easy to retro fit in most UK homes. (Can also work WITH neutral wire)
  • Minimum brightness can be set to ensure you get best dimming range out of your lights.
  • Works with physical retractive switches to control on/off and dimming, in 1-way or multi-way circuits.
  • Supports Zigbee Touchlink and find-and-bind.

Legal information

  • UKCA/CE compliant, RoHS

Specifications

ColourWhite
Maximum frequency60Hz
Number of earth terminals1
Number of gangs1
Network technologyZigBee
Power voltage supply100-240V
Product length45mm
Product width20mm
Number of ways2
WaveformTrailing edge
Voltage suitabilityMains voltage
Back box depth25mm
Product code5065004923057
