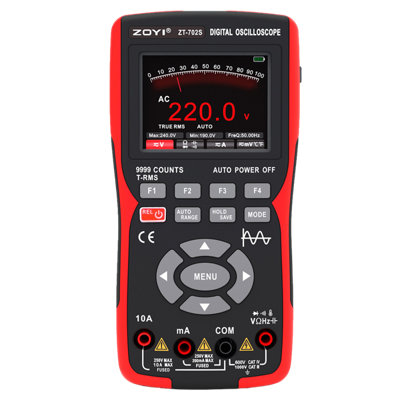

ZOYI Handheld Digital Oscilloscope Multimeter 2 in 1, 9999 Counts, 10A, True RMS, 10MHz Bandwidth, 2.8 IPS Colour Display

Product information

ZOYI digital oscilloscope multimeter tester designed for various applications and Voltage Tester This device boasts a 10 MHz bandwidth, 48MSa/s real-time sampling rate, and 2.8" IPS full-view color screen, providing clear and accurate waveform visualization to test any Electrical Devices, The ZT-702S Electrical tester offers single-channel probe input measurement, with a count of up to 9999 and a storage depth of 64Kpts. It can measure DC and AC voltage up to 1000V and 750V respectively, and DC and AC current up to 10A each. The device also includes resistance measurement up to 100MΩ, capacitance measurement up to 100mF, and frequency measurement up to 10MHz. Additionally, it can measure temperature from -20°C to 1000°C and features a diode and continuity test. The ZT-702S is equipped with an auto-ranging feature, true RMS, data hold, backlight, low battery indication, and auto power-off functions. It is made of ABS+TPE material, with dimensions of 177*89*40mm and a weight of 530g (excluding battery). The device uses a rechargeable 18650 battery and comes with a Type C charging cable. Ideal for school education, automobile maintenance, power detection, and delicate repairs.

Features and benefits

• ✅ DIGITAL OSCILLOSCOPE MULTIMETER: A versatile and practical tool for a professional or hobbyist with Max/Min value, 10MHZ bandwidth, 48MSa/s real time sampling rate, auto-calibration XY function, Single channel probe input measurement.
• ✅ ENHANCED VISIBILITY: Oscilloscope Multimeter has a Large lighting screen with 3 display modes for improved clarity in any condition.
• ✅ DOUBLE INJECTION VOLTAGE TESTER MODE: 9999 digits of the true effective value. Standard voltage, current, resistance, diode, continuity, capacitance Temperature test. Auto range function, convenient for testing and debugging. The maximum input voltage is AC 750V, DC 1000V. 10A Independent multimeter and oscilloscope input. Reading and Data Hold function.
• ✅ RECHARGEABLE SCOPE METER: Integrated with a rechargeable battery, with indication of current battery status and charge level. No need to replace batteries and no worries of power.Independent battery storage compartment, supports charging and measuring while working.
• ✅ DATA LOGGING & STORAGE: Built-in storage capabilities depth 64Kpts allow you to save and review data on the go. USB Connectivity: Convenient USB interface for data transfer to your computer for further analysis and record-keeping.
• ✅ Item Including: 1x Oscilloscope multimeter ZT702S, full sets of multimeter test leads, 1x user manual, lifetime technical support. Please feel free to contact us if you have any concerns.
• ✅ Extended After-Sale Service: Benefit from our 30-day risk-free return policy,Enjoy 365 days of dedicated after-sale support.
