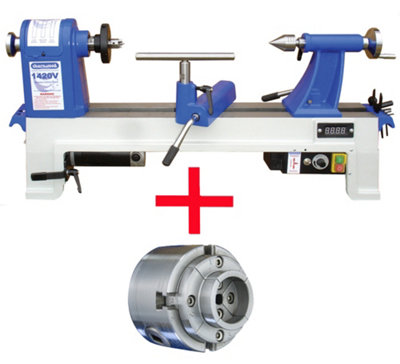

Charnwood 1420VP Variable Speed Bench Top Wood Lathe with Scroll Chuck
Product details
Product information

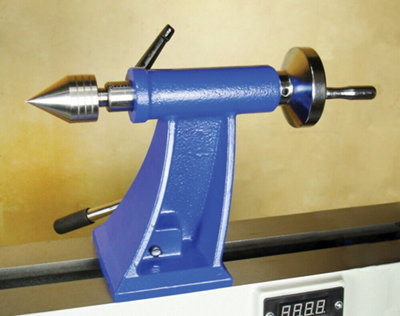

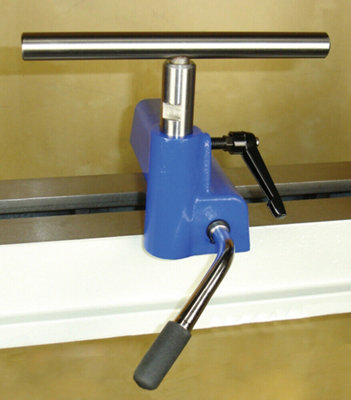

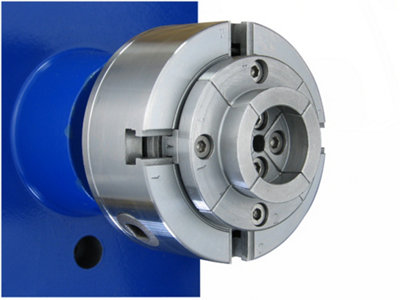

Package consists of : 1420V Lathe & VIPER3R Chuck Electronic Variable Speed Control Digital Speed Read Out Reverse Direction Powerful & Quiet 750w (1hp) Motor High Quality Drive and Tail Centres Cam Action Tool Rest Banjo Steel Tool Rest Bar Built In 24 Position Indexing Hollow head & tail stock Charnwood 1420V Specification Max. spindle length (without centres) 500mm (20″) Max. spindle length (with centres fitted) 430mm (17″) Distance over bed (Max. bowl diameter) 350mm (14″) Distance over tool rest (Max. spindle diameter) 250mm (10″) Tool rest length 150mm (6″) Tool rest stem diameter 25mm Motor (DC carbon brush) 750w (1hp), 240v Speed range 250 – 3550rpm Spindle thread size M33 x 3.5 (Din800) Spindle tapers MT2 No. of indexing positions 24 (every 15 degrees) Hollow headstock diameter 10mm Hollow tailstock diameter 8mm Dimensions (WxDxH) 950 x 370 x 500mm Weight 57kg Product Guarantee 5 Years VIPER3R Scroll Chuck The best selling size from the Charnwood Viper range. A 4″ sized scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Midi sized lathes and upwards. The fully enclosed design prevents the build up of chips and dust inside the gear mechanism. Charnwood VIPER3R Specification Direct Mounting Thread M33 x 3.5 Chuck Body Diameter 95mm Standard Jaws Expand from 45mm to 80mm Standard Jaws Contract from 67mm to 32mm
- Guarantee - 5 years
Features and benefits

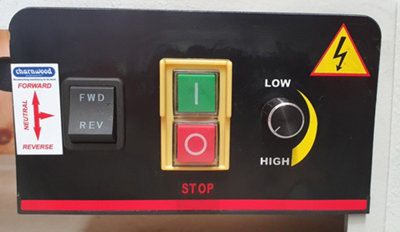

- Electronic Variable Speed Control

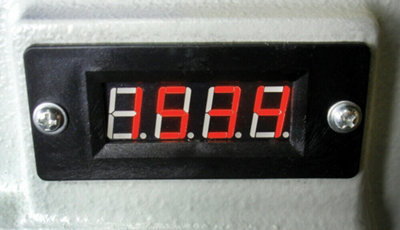

- Digital Speed Read Out
- Reverse Direction
- Powerful & Quiet 750w (1hp) Motor

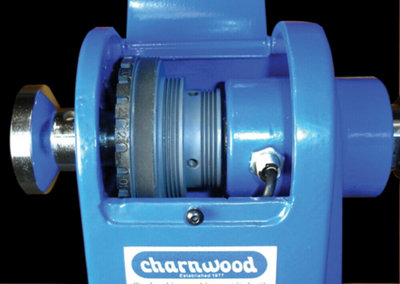

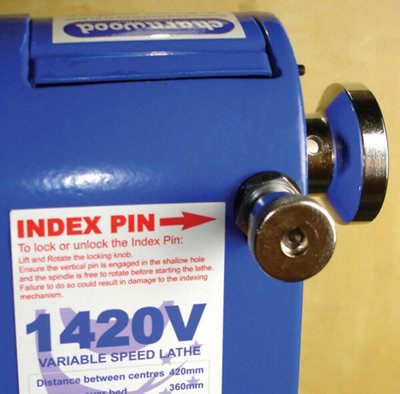

- Built In 24 Position Indexing
Specifications
| Brand | Charnwood |
|---|---|
| Cable length (m) | 1.9m |
| Depth (mm) | 370mm |
| Height (mm) | 500mm |
| Model name/number | 1420VP |
| Motor drive type | Belt driven |
| Motor type | Replaceable carbon brushed |
| No load speed | 250 – 3550rpm |
| Pack quantity | 1 |
| Power voltage supply | 240V |
| Rotation direction | Forward |
| Speed settings | Variable |
| Spindle thread size | M33 |
| Switch type | No volt release switch |
| Tool rest | Adjustable |
| Tool weight (corded) | 65kg |
| Wattage | 750W |
| Product code | 5060486046508 |
