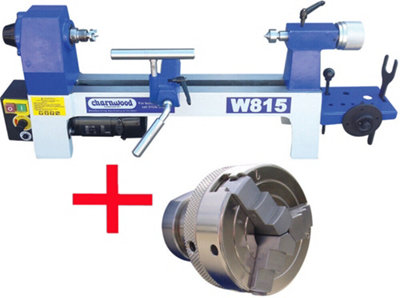

CHARNWOOD W815P Variable Speed Mini Woodturning Lathe with 3 Jaw Chuck

Product information

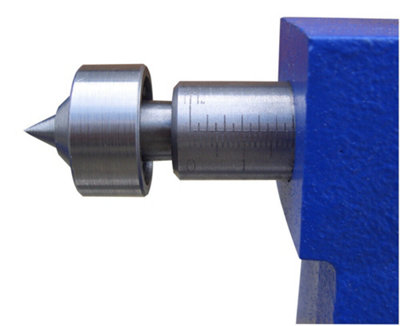

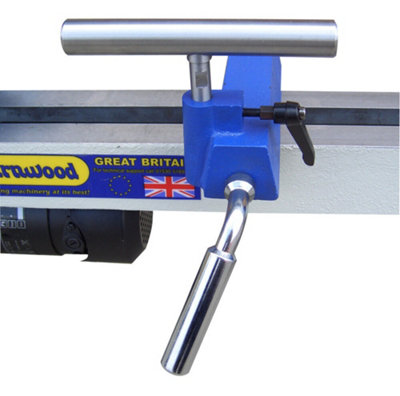

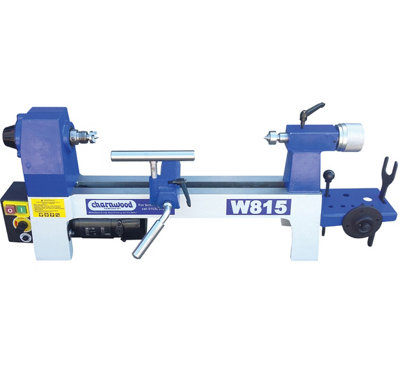

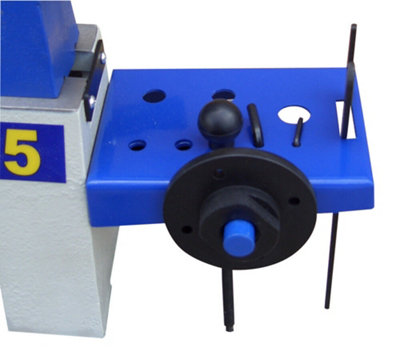

Package Consists of; W815 Mini Lathe W810 3 Jaw Chuck W815 Mini Woodturning Lathe: A high quality mini woodworking lathe ideal for the production of smaller pieces or where the workshop size does not allow for a longer bed. The bed, headstock and tailstock are all constructed from cast iron to give vibration free running but the compact size means the weight is still manageable and the lathe can be removed from the bench when not in use. Electronic variable speed control allows the ideal speed to be quickly selected for jobs of any diameter. The cam lock banjo design is easy to use, and when coupled with the round bar tool rest is a winning combination. The tool rest cross bar can be removed from the stem to change the length of the cross bar. Compatible with the Robert Sorby range of cross bars. We also now include a handy storage rack to keep centres, faceplates and service tools in one place and ready to go. Supplied with four prong drive centre, revolving tail centre, 150mm (6″) tool rest cross bar with 12mm diameter stem, 75mm (3″) diameter faceplate, 1.9m power cable and UK 3 pin plug. Charnwood W815 Lathe Specification Distance between centres 330mm (13″) Distance over bed 200mm (8″) Motor (carbon brush) 250w Speeds 750 – 3200rpm Spindle thread size 1″ x 8tpi Head and tailstock tapers 1MT Dimensions (WxDxH) 690mm x 220mm x 310mm Weight 20kg Assembly Time Required 10 Minutes Rating Hobby Product Guarantee 5 Years

• Guarantee - 5 years

Features and benefits

• Variable Speed 750 - 3200rpm
• Cast Iron Bed, Headstock, Tailstock and Tool Rest Banjo
• Spindle Turning Capacity 330mm (13")
• Bowl Turning Capacity 200mm (8

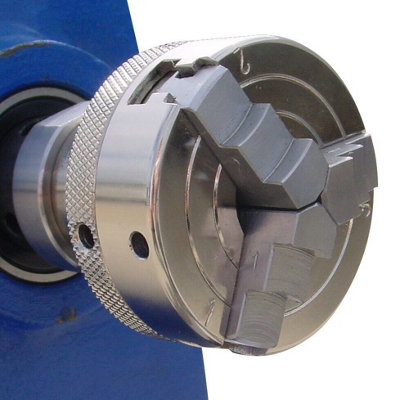

• Package Includes 3 Jaw Scroll Chuck
