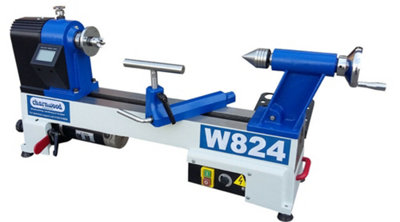

Charnwood W824 Midi Woodturning Lathe, Bench Top, Variable Speed, 12" x 14"

Product information

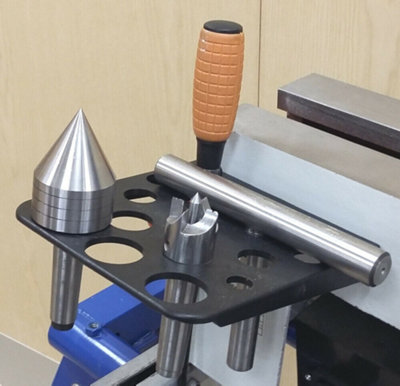

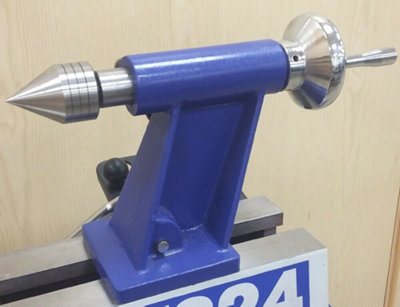

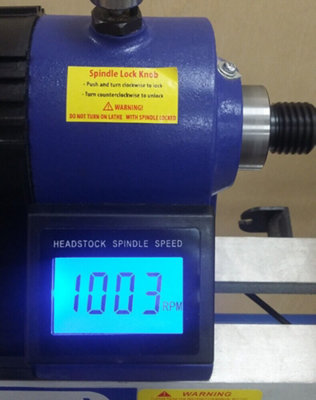

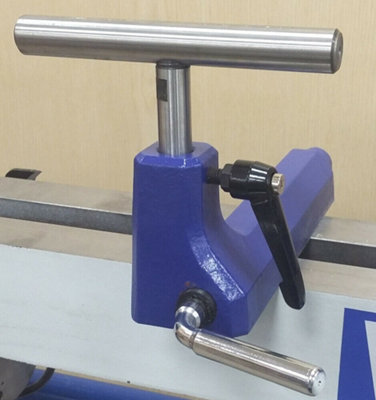

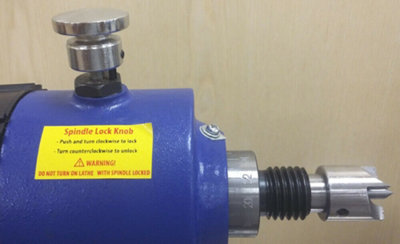

The midi sized lathe continues to be the best seller. It is a size which can accomplish most of the projects turners are likely to try and is the largest lathe which can comfortably be moved off the bench when not in use. We have developed ours further this year to now include an indexing system on the headstock spindle as well as more robust electronics, specifically designed for UK voltage. The bed of the lathe is one-piece precision ground cast iron giving 14″ between centres when working with our new heavy duty centres, which are supplied as standard. The bowl turning capacity of 12″ diameter over the bed, requires a very low speed which is achieved using a converter and a DC motor. A clear LCD display shows the current RPM. The tool rest banjo is a cam-lock design for rapid adjustments with all metal components. The tool rest itself is our ever popular round bar made from hardened steel The headstock is hollow centred to allow for easy tool removal, the tailstock is also hollow and has automatic centre removal. Supplied with drive and tail centres 2MT, knockout bar, 6″ toolrest with 5/8″ shank, 3″ diameter faceplate, tool holder, carrying handles, cable tidy, 1.9m power cable and 3 pin UK plug. N.B. The distance between centres will vary and be dependent on the type of centres or accessories used. Maximum distance is 450mm (18″). Charnwood W824 Specification Distance between centres 360mm (14″) Distance over bed 300mm (12″) Motor DC (carbon brush) 550w (3/4hp), 240vv Speed range 500 – 3800rpm Spindle thread size 1″ x 8tpi Spindle tapers 2MT Indexing Positions 24 (every 15 degrees) Dimensions (WxDxH) 980mm x 310mm x 440mm Weight 32kg Assembly Time Required 10 Minutes Rating Hobby Product Guarantee 5 Years

• Guarantee - 5 years
• Comes with Supplied with drive and tail centres 2MT, knockout bar, 6″ toolrest with 5/8″ shank, 3″ diameter faceplate, tool holder, carrying handles, cable tidy, 1.9m power cable and 3 pin UK plug.

Features and benefits

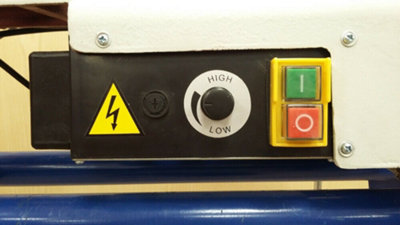

• Electronic Variable Speed Control 500 - 3800rpm
• Cast Iron Bed, Headstock, Tailstock and Tool Rest Banjo
• Spindle Turning Maximum Length 360mm (14")
• Bowl Turning Maximum Diameter 300mm (12")
• 5 Year Product Guarantee

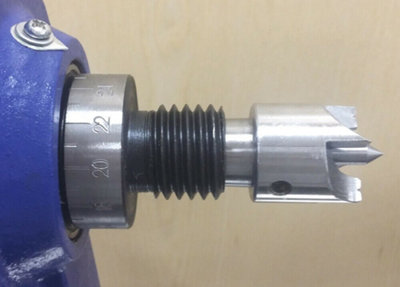

• 4 Prong Drive Centre Included

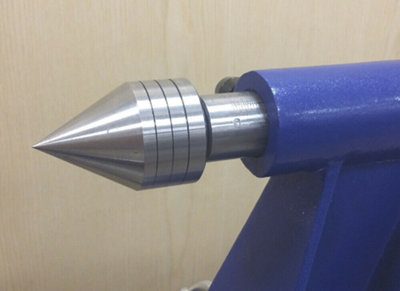

• Revolving Tail Centre Included
• 75mm Diameter Faceplate Included
