DeWalt 7" Rafter square

Sold & shipped by B&Q

Left chevron
DeWalt 7" Rafter square
Right chevron
Checking availability...

Product details

Product information

  • Guarantee - 1 year
  • Comes with 1x rafter square

Features and benefits

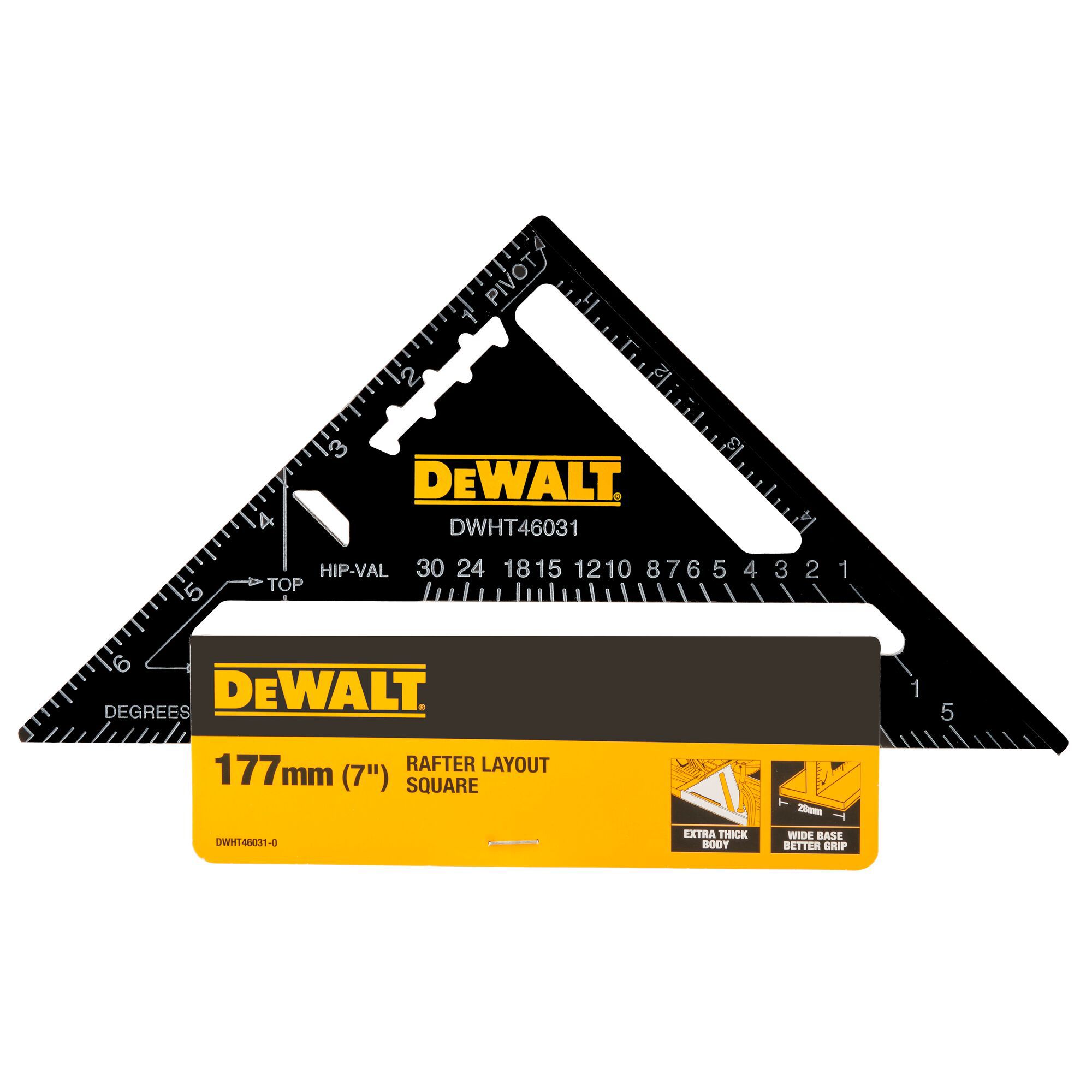

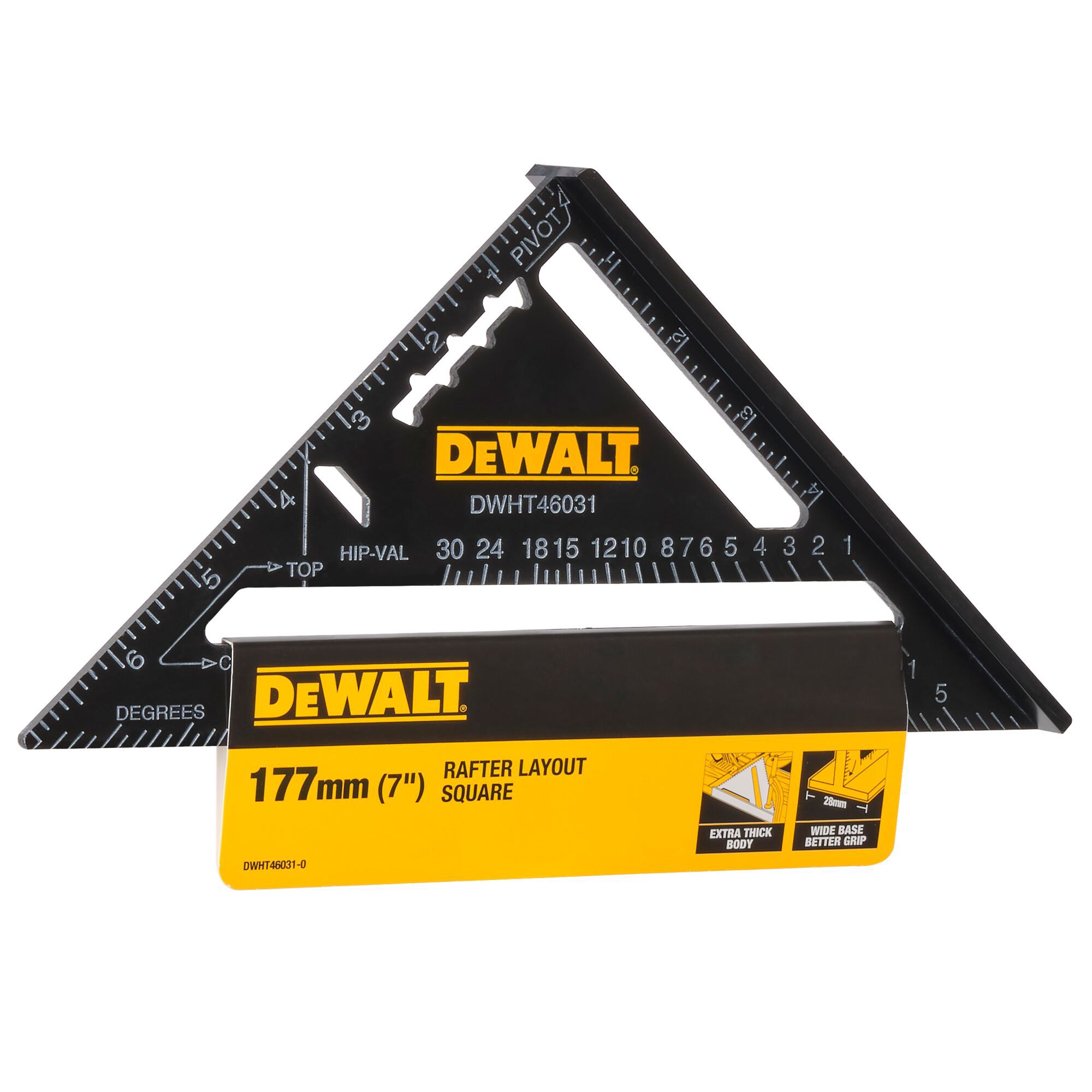

The DEWALT® 175mm (7") Square is ideal for use as a saw guide and has an extra-thick aluminium body for heavy-duty use as well as stamped in contrasting colour graduations for better readability. It also features a large base to provide grip on materials

  • Markings embossed in contrasting colours for better readability
  • 90° angle scale with graduations at 1 degrees for easy measuring of angles
  • Scales of top cuts of common jack rafters, hip and valley rafters for versatility
  • Scribe line notches for marking rip cuts
  • Pivot point makes marking out angles easy


ColourBlack & yellow
DurabilityHeavy duty
Measuring product typeSquare
Model name/numberDWHT46031-0
Product height21mm
Product length185mm
Product length (imperial)7"
Product weight213g
Product width158mm
Product code3253560460310
