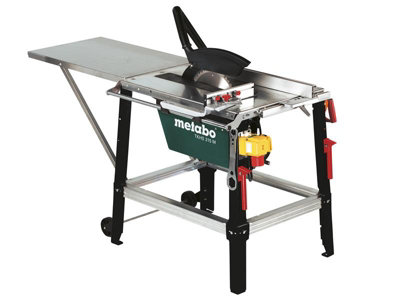

Metabo 0103153038 TKHS 315 M Site Saw 2500W 240V MPTTKHSM
Product details
Product information

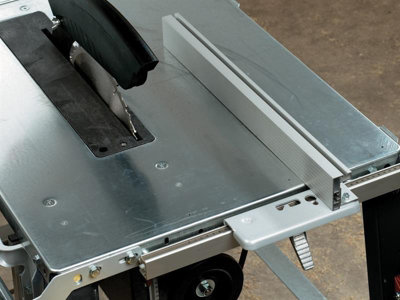

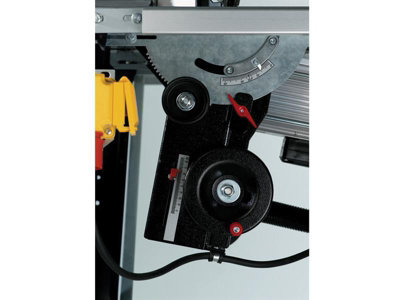

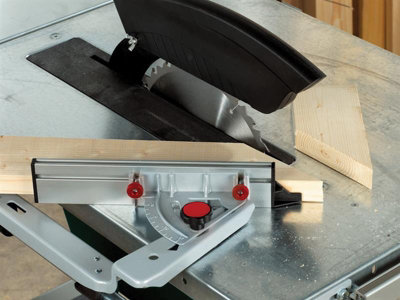

The Metabo TKHS 315 M Site Saw is a precise, powerful table saw in professional configuration that quickly adapts to every application. It is fitted with a quiet induction motor that has a maintenance-free, robust design with a motor brake and overload protection. It also has restart protection that prevents unintentional start-up after power supply interruption, for complete ease of mind. There is a sturdy parallel guide/ripping fence with quick fastening combined with a mitre fence that has a linear stop, so it can also be used a sliding table. The saw blade height is freely adjustable and the saw blade inclination can be adjusted from the front. It has a sturdy, powder-coated sheet steel design with a galvanised table-top and foldable table length extension. The frame and motor are supplied pre-mounted. Ideal for sawing squared timber, boards, panels and wood-like materials in the workshop and at construction sites. Supplied with: 1 x 300mm 24 Tooth Carbide Saw Blade, 1 x Mitre Fence, 1 x 600 x 800mm Table Extension, 1 x Chip Dust Extraction Unit, 1 x Push Stick, 1 x Wheel Handle Set and 1 x Parallel Guide/Rip Fence. Specifications: Input Power: 2,500W. No Load Speed: 3,000/min. Table Size: 800 x 600mm, Bevel Capacity: 0-45. Cutting Height: 0-85mm. Cutting Width: Parallel Guide/Rip Fence: 340mm, Mitre Fence: 250mm. Weight: 75kg. The Metabo TKHS 315 M Site Saw 240 Volt Version.
- Guarantee - Statutory
- Comes with 1 x 300mm 24 Tooth Carbide Saw Blade, 1 x Mitre Fence, 1 x 600 x 800mm Table Extension, 1 x Chip & Dust Extraction Unit, 1 x Push Stick, 1 x Wheel & Handle Set and 1 x Parallel Guide/Rip Fence
Features and benefits
Voltage:240V Input Power:2,500W Blade Diameter x Bore:315 x 30mm No Load Speed rpm:2995 Max. Rippping Capacity - Right:340mm Max Rippping Capacity - Left:340mm Max Depth of Cut 90�:85mm Max Depth of Cut 45�:53mm Brand:Metabo Category:Site Saws Height:500mm Width:870mm Depth:620mm Weight:75.0kg MPN:0103153038
- Voltage:240V
- Input Power:2,500W
- Blade Diameter x Bore:315 x 30mm
- No Load Speed rpm:2995
- Max. Rippping Capacity - Right:340mm
- Max Rippping Capacity - Left:340mm
- Max Depth of Cut 90�:85mm
- Max Depth of Cut 45�:53mm
Specifications
| Brake type | Motor |
|---|---|
| Brand | Metabo |
| Cable length (m) | 100m |
| Compatible blade diameter | 300mm |
| Depth (cm) | 0.1cm |
| Dust extraction type | Chip extraction |
| Height (cm) | 0.1cm |
| Maximum bevel left | 45° |
| Maximum cutting capacity (45° bevel) | 45mm |
| Maximum cutting capacity (90° bevel) | 85mm |
| Model name/number | 0103153038 |
| Motor type | Induction |
| No load speed | 3,000 RPM |
| Pack quantity | 1 |
| Power voltage supply | Mains fed |
| Table material | Steel |
| Tool weight (corded) | 75kg |
| Wattage | 2500W |
| Width (cm) | 0.1cm |
| Product code | 4003665403380 |
